Anterior Cervical Plate of Spinal System

Short Description:

Product No. Diameter(mm) Length(mm) Unit
7400-A100424 4.0 24 Piece
7400-A100426 26
7400-A100428 28
7400-A100430 30
7400-A200633 6.0 33
7400-A200636 36
7400-A200639 39
7400-A200642 42
7400-A200645 45
7400-A200648 48
7400-A200651 51
7400-A300853 8.0 53
7400-A300856 56
7400-A300859 59
7400-A300862 62
7400-A300865 65
7400-A300868 68
7400-A401072 10 72
7400-A401076 76
7400-A401080 80
7400-A401084 84
7400-A401088 88

Product Detail

Quick Details

Product Tags

Product OverView

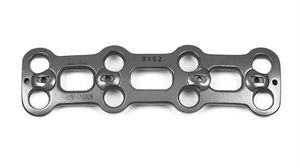

Anterior cervical plate system is composed of anterior cervical plate, cervical screws with a diameter of 4.0mm and rescue screws with a diameter of 4.5mm. The anterior cervical spine plate is made of pure titanium, and the cervical spine screws and rescue screws are made of titanium alloy. On the coronal plane between the screw and the steel plate, it can provide adjustable angle fixation within the range of 0°-12°. On the sagittal plane between the screw and the plate, it can provide adjustable angle fixation within the range of 0°-10°. The angle fixation between the screw and the plate makes the operation more stable.

Product Features

Material

Medical titanium alloy

Components

Anterior Cervical Plates, Cervical Screw

Advantages

The cervical plate has its own anatomical arc design, which fits the bone surface. The ultra-thin design minimizes foreign body sensation after surgery. The screw can be widely adjusted between 0-12 degrees, which increases the convenience of fixation.

Application

Used for the fixation of cervical vertebral fractures and spondylolisthesis

Anterior Cervical PlatesYJQ06 (4)

Product parameters

Number Product Name and Model Product No. Diameter(mm) Length(mm) Unit
7400 Anterior Cervical Plates/YJQ06Anterior cervical plates 7400-A100424~A100430 4 24-30mm(Interval 2mm) Piece
7400-A200633~A200651 6 33-51mm(Interval 3mm)
7400-A300853~A300868 8 53-68mm(Interval 3mm)
7400-A401072~A401088 10 72-88mm(Interval 4mm)
7400 Cervical Screw/HBQ03Anterior cervical plates 7400-A504013~A504017 4 13-17mm(Interval 1mm) Piece

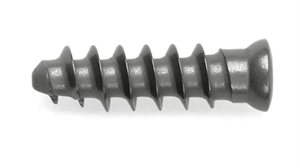

7400 Rescue Screw/HBQ03Anterior cervical plates 7400-A604513~A604517 4.5 13-17mm(Interval 1mm) Piece

Why Choose Us

1、Our company cooperates with a number Lorem ipsum, dolor sit amet consectetur.

2、Provide you with a price comparison of your purchased products.

3、Provide you with factory inspection services in China.

4、Provide you with clinical advice from a professional orthopedic surgeon.

certificate

Services

Customized Services

We can provide you with customized services, whether it is orthopedic plates, intramedullary nails, external fixation brackets, orthopedic instruments, etc. You can provide us with your samples, and we will customize the production for you according to your needs. Of course, you can also mark the laser LOGO you need on your products and instruments. In this regard, we have a first-class team of engineers, advanced processing centers and supporting facilities, which can quickly and accurately customize the products you need.

Packaging & Shipping

Our products are packaged in foam and carton to ensure the integrity of your product when you receive it. If there is any damage to the product you received, you can contact us as soon as possible, and we will reissue it to you as soon as possible!

Our company cooperates with a number of well-known international special lines to ensure the safe and efficient delivery of goods to you. Of course, if you have your own special line logistics, we will give priority to choose!

Technical Support

As long as the product is purchased from our company, you will get the installation guidance of our company's professional technicians at any time. If you need it, we will give you the operation process guidance of the product in the form of video.

Once you become our customer, all products sold by our company have a 2-year warranty. If there is a problem with the product during this period, you only need to provide relevant pictures and supporting materials. The product you purchased doesn’t need to be returned, and the payment will be refunded directly to you.Of course, you can also choose to deduct it from your next order.

  • Anterior cervical plates (3)
  • Anterior cervical plates (4)
  • Anterior cervical plates (6)
  • Anterior cervical plates (7)
  • Anterior cervical plates (8)

  • Previous:
  • Next:

  • Properties Implant Materials & Artificial Organs
    Type Implantation Equipments
    Brand Name CAH
    Place of Origin: Jiangsu, China
    Instrument classification Class III
    Warranty 2 years
    After-sale Service Return and Replacement
    Material Titanium
    Certificate CE ISO13485 TUV
    OEM Accepted
    Size Multi Sizes
    SHIPPING DHLUPSFEDEXEMSTNT Air Cargo
    Delivery time Fast
    Package PE Film+Bubble Film
