Humerus Interlocking Nail System-Multidimensional Locking

Short Description:

Product name Material
Humerus interlocking intramedullary nail system – multi-dimensional locking nail main nail (left and right) Titanium Alloy
ø4.5 multidimensional lock nail
ø3.5 Locking Screw
ø3.5 locking screw
End Cap
Lengthened End Cap

Product Detail

Quick Details

Product Tags

Product OverView

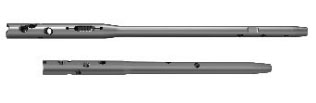

Humerus interlocking intramedullary nail - multidimensional locking. Made of titanium alloy material, it consists of main nails (divided into left and right type), multi-dimensional lock nails and lock nails. There are a variety of screw lengths to choose from, and the main screw is available in 7.0 and 8.0mm sizes to address simple and complex fractures of the proximal humerus and humeral shaft. Unique internal screw thread design for improved stability. The bicortical screw design increases the stability of transverse and short oblique fractures. This product is favored by the majority of orthopedic surgeons.

Product Features

Material

Medical titanium alloy

Components

Main Multidimensional Locking Nail, Multidimensional Locking Screw, Blade Nail, Locking Screw, Lengthened End Cap

Advantages

The unique internal screw thread design of the product improves the stability of fixation, and the application of bicortical screws further enhances the stability of transverse and short oblique fractures. At the same time, the operation process is quick, the operation is simple, and the bleeding is less, which has great advantages for the surgical treatment of patients with osteoporosis.

Application

Fractures of the proximal humerus, fractures of the humeral head

HUMERUSS

Product parameters

Humerus interlocking intramedullary nail system - multi-dimensional locking nail main nail (left and right)
Humerus Product NO. Diameter(mm) Length(mm) Material
6101-170200(L/R)-T70280(L/R) 7.0 200-300(Interval 20mm) Titanium Alloy
6101-T80220(L/R)-T80300(L/R] 8.0 200-300(Interval 20mm)
6101-T851 60(L/R) 8.5 160
Remark Length 200- 300 per 20mm for a specification
ø4.5 multidimensional lock nail
Humerus Diameter(mm) Length(mm) Material
4.5 20-60(Interval 2mm) Titanium Alloy
Remark: per 2mm for a specification
ø3.5 Locking Screw
Humerus Diameter(mm) Length(mm) Material
3.5 20-66(Interval 2mm) Titanium Alloy
Remark: per 2mm for a specification
ø3.5 locking screw
Humerus Diameter(mm) Length(mm) Material
3.5 26-52(Interval 2mm) Titanium Alloy
Remark: per 2mm for a specification
End Cap
Humerus Specification(mm) Material
/ Titanium Alloy
Lengthened End Cap
Humerus Specification(mm) Material
2.5 Titanium Alloy
5
7.5
10

Why Choose Us

1、Our company cooperates with a number Lorem ipsum, dolor sit amet consectetur.

2、Provide you with a price comparison of your purchased products.

3、Provide you with factory inspection services in China.

4、Provide you with clinical advice from a professional orthopedic surgeon.

certificate

Services

Customized Services

We can provide you with customized services, whether it is orthopedic plates, intramedullary nails, external fixation brackets, orthopedic instruments, etc. You can provide us with your samples, and we will customize the production for you according to your needs. Of course, you can also mark the laser LOGO you need on your products and instruments. In this regard, we have a first-class team of engineers, advanced processing centers and supporting facilities, which can quickly and accurately customize the products you need.

Packaging & Shipping

Our products are packaged in foam and carton to ensure the integrity of your product when you receive it. If there is any damage to the product you received, you can contact us as soon as possible, and we will reissue it to you as soon as possible!

Our company cooperates with a number of well-known international special lines to ensure the safe and efficient delivery of goods to you. Of course, if you have your own special line logistics, we will give priority to choose!

Technical Support

As long as the product is purchased from our company, you will get the installation guidance of our company's professional technicians at any time. If you need it, we will give you the operation process guidance of the product in the form of video.

Once you become our customer, all products sold by our company have a 2-year warranty. If there is a problem with the product during this period, you only need to provide relevant pictures and supporting materials. The product you purchased doesn’t need to be returned, and the payment will be refunded directly to you.Of course, you can also choose to deduct it from your next order.

  • Humeral Interlocking Nail System-Multidimensional Locking (2)
  • Humeral Interlocking Nail System-Multidimensional Locking (3)
  • Humeral Interlocking Nail System-Multidimensional Locking (4)
  • Multidimensional Locking screw (1)
  • Multidimensional Locking screw (2)

  • Previous:
  • Next:

  • Properties Implant Materials & Artificial Organs
    Type Implantation Equipments
    Brand Name CAH
    Place of Origin: Jiangsu, China
    Instrument classification Class III
    Warranty 2 years
    After-sale Service Return and Replacement
    Material Titanium
    Certificate CE ISO13485 TUV
    OEM Accepted
    Size Multi Sizes
    SHIPPING DHLUPSFEDEXEMSTNT Air Cargo
    Delivery time Fast
    Package PE Film+Bubble Film
