By CAH Medical | Sichuan, China
For buyers seeking reliable orthopedic power tools with factory-direct pricing, CAH Medical offers premium low-speed surgical drills with customizable specs, end-to-end logistics, and professional after-sales support. Backed by strict quality control and deep industry expertise, we deliver high-torque solutions built for heavy-duty orthopedic surgeries that meet global clinical standards.
I. Key Technical Specifications

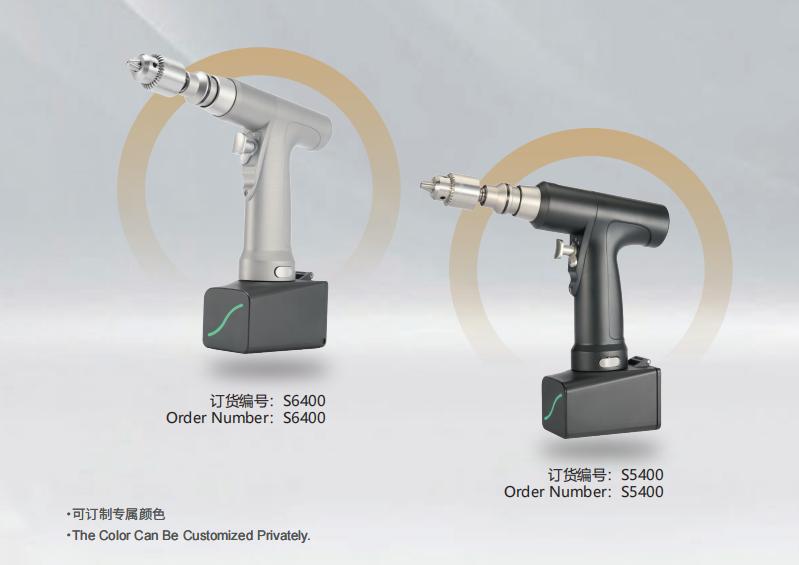

Our High-Level Low Speed Orthopedic Drillis purpose-built for maximum torque and stability in the most demanding orthopedic procedures, with the following core performance parameters:
| Parameter | Details |
| Motor Type | Brushless, axis hollow, fully closed, high output |
| Rotation Speed | 0-320 rpm (±10% accuracy) |
| Output Torque | ≥20 N·m |
| Temperature Rise | ≤50℃ |
| Noise Level | ≤55db |
| Hollow Axis Diameter | Ø4.5mm |
| Host Weight | 1450g |
| Output Power | ≥260W |
| Working Mode | Stepless speed change |
| Radial Runout | <0.1mm |
| Sterilization Mode | High Temprature & Pressure 151℃ (Except Battery) |
| Charger Specs | Power Supply Voltage:AC100-240V/50-60HZ |
| Battery | High-performance lithium battery: 16V 3000mAh |
| Drill Chuck | Hardness HRC53, Diameter:0-8mm (Special Requirements Can Be Customized) |
| Warranty | 18 months for the whole machine, 6 months for batteries |
| Customization | Private color customization available |
II. Why Choose Our High-Level Low Speed Surgical Drill?
✅ Unmatched Torque for Heavy-Duty Orthopedic Surgery
- Ultra-High Torque: 20N·m output torque effortlessly handles dense cortical bone and hard tissue, ideal for trauma fixation, joint replacement, and spinal surgery.
- Precision Control: Stepless speed adjustment and <0.1mm radial runout deliver consistent, controlled drilling, minimizing tissue damage and ensuring surgical accuracy.
- Long-Lasting Power: 3000mAh high-capacity lithium batteries support extended surgical procedures, with fast charging to eliminate downtime.
- Autoclavable Design: The entire drill (excluding battery) withstands 151℃ high-temperature high-pressure sterilization, meeting strict hospital infection control standards.
- Fully Sealed Motor: Brushless, fully closed motor prevents fluid and debris ingress, ensuring long-term reliability and easy cleaning.
- Customizable Color: Choose your preferred color for easy identification in the operating room.
✅ Sterilization & Safety Compliance
✅ Complete Standard Configuration
Each set comes with everything you need for immediate clinical use:
- 1 x Main drill unit
- 2 x Lithium batteries
- 1 x Drill chuck assembly
- 1 x Drill chuck key
- 1 x Fast pulse charger
- 1 x Isolation channel
- 1 x User manual
- 1 x Certificate of qualification, acceptance form, and product repair card
- 1 x Outer packaging box
III. Direct from Chinese Orthopedic Device Source Factory
We cut out the middleman to bring you factory-direct pricing without compromising quality. Whether you need single units or bulk orders, we offer:
- ✅ Low MOQ & Customization: Flexible order quantities, custom drill chuck sizes, and private color options to meet your specific surgical needs.
- ✅ Premium Quality: Precision manufacturing with strict quality inspection, ensuring CE/ISO compliance for global markets.
- ✅ End-to-End Logistics: Reliable international shipping, customs clearance support, and door-to-door delivery.
- ✅ Professional Support: 24/7 technical assistance, detailed product documentation, and comprehensive after-sales service.
IV.Upgrade your orthopedic surgery with our high-torque low-speed surgical drill!
Whether for routine fracture fixation, trauma surgery, or joint replacement, our drill delivers the power, precision, and reliability you need for every procedure.
✅ Factory Direct Price: Unbeatable wholesale rates for bulk orders
✅ Superior Quality: Autoclavable, CE-compliant, built for long-term use
✅ Full Configuration: Complete set ready for immediate clinical use
✅ Global Shipping: Fast, reliable delivery to your doorstep
✅ Customizable: Private color options to fit your OR needs
V. Contact us now for a quote!
Phone/WhatsApp: +86 15008449628
Email: cah@medtechcah.com
Post time: Mar-27-2026
